VidiFlow Workflow on Project Creation [VE 22.1 OG]
When creating projects in VidiEditor, these will be persisted in the central VidiCore component (see: Architecture [VE 22.1 OG]). These are also usable by VidiFlow.
When running VidiEditor together with VidiFlow, it can make sense to also trigger a VidiFlow workflow on project creation depending on the system design. An easy example of this could be to use the workflow to collect metadata from a 3rd party interface and enrich it to the VidiEditor project. Several different scenarios could be thought for using this configuration in a complex system design, using several options supported by VidiFlow based on the created VidiEditor collection (compare: Data Handling [VE 22.1 OG]). The following relevant information about this workflow should be given:
Number of workflows possible | 1 |
Workflow name | Configurable via ConfigPortal |
Type | Fire and Forget (No Monitoring by VidiEditor) |
Input Parameter | Collection ID (VidiEditor Project) |
Activation of feature | Active if a Workflow is set in ConfigPortal |
Trigger of Workflow Instance | Create Project in VidiEditor |

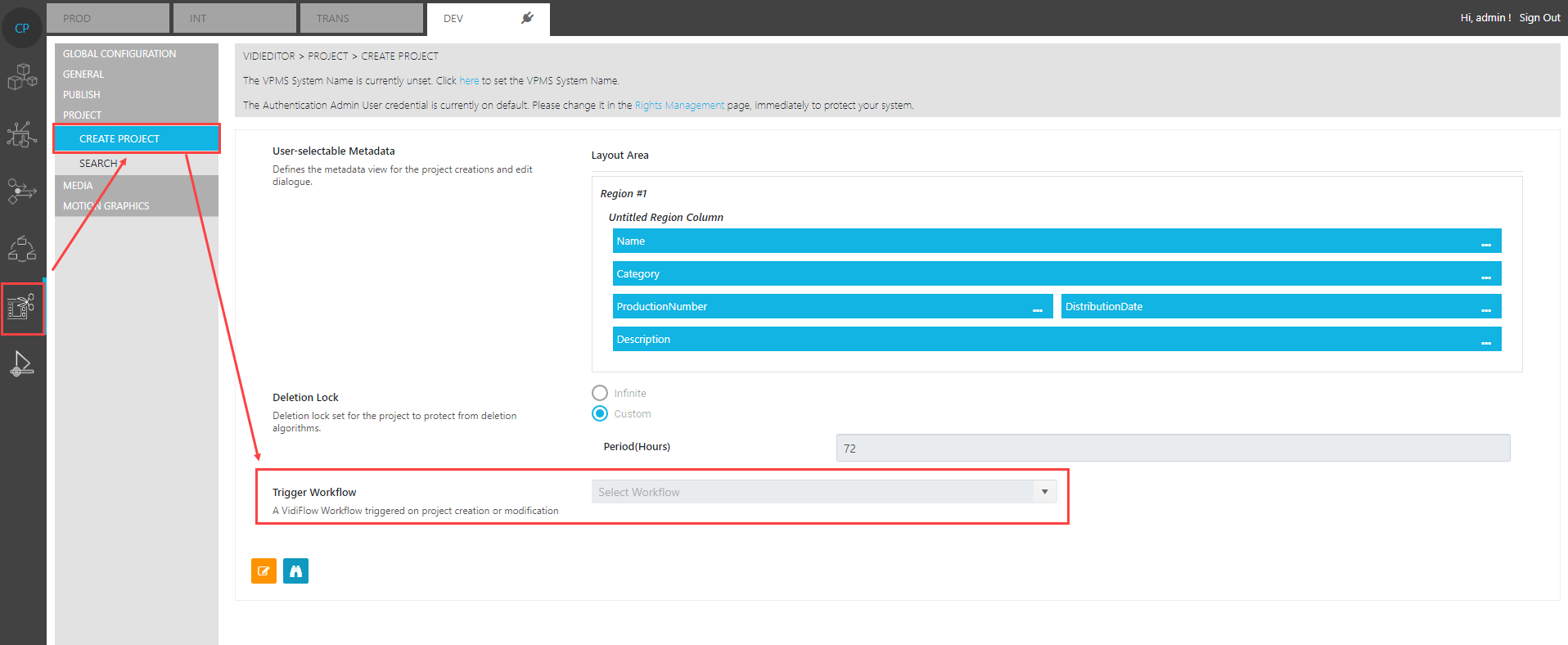

The configuration of the workflow to be triggered can be made in the VidiEditor configuration inside ConfigPortal und VidiEditor → Project → Create Project → Trigger Workflow. It allows one to select a workflow from the existing list of VidiFlow workflows.
