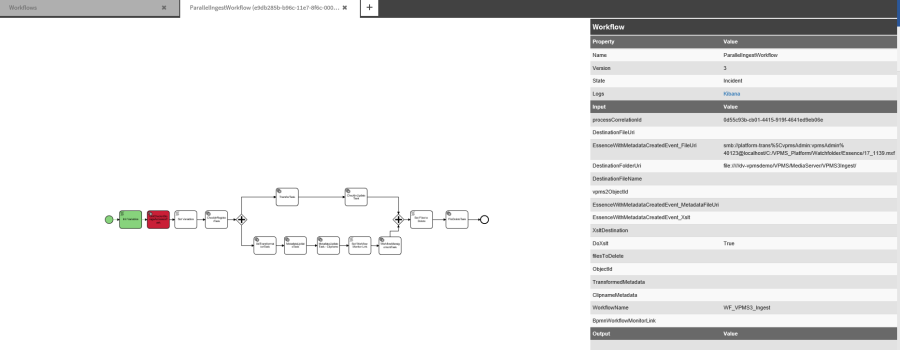

Clicking on a search result's row will open a new tab in the Workflows Monitor. This tab is dedicated to displaying both the workflow's model as well as specific information particular to the workflow's instance.



The Instance View is divided into two sections. One is the Workflow Diagram and the other a Workflow Details Table.
It is important for VidiFlow users to note that unlike a workflow modeler, the Instance View offers only a visualization of the workflow and therefore, delivers detailed information for each individual step useful for process tracing and error analysis. Users are not able to actively modify the model or any of its parameters through the Workflow Monitor itself. Should a user with particular administrator rights wish to modify the workflow model that workflow instance is based on, they would have to do so via ConfigPortal and the Workflow Designer.
