Infrastructure Layers [ENT 22.1 ARC]

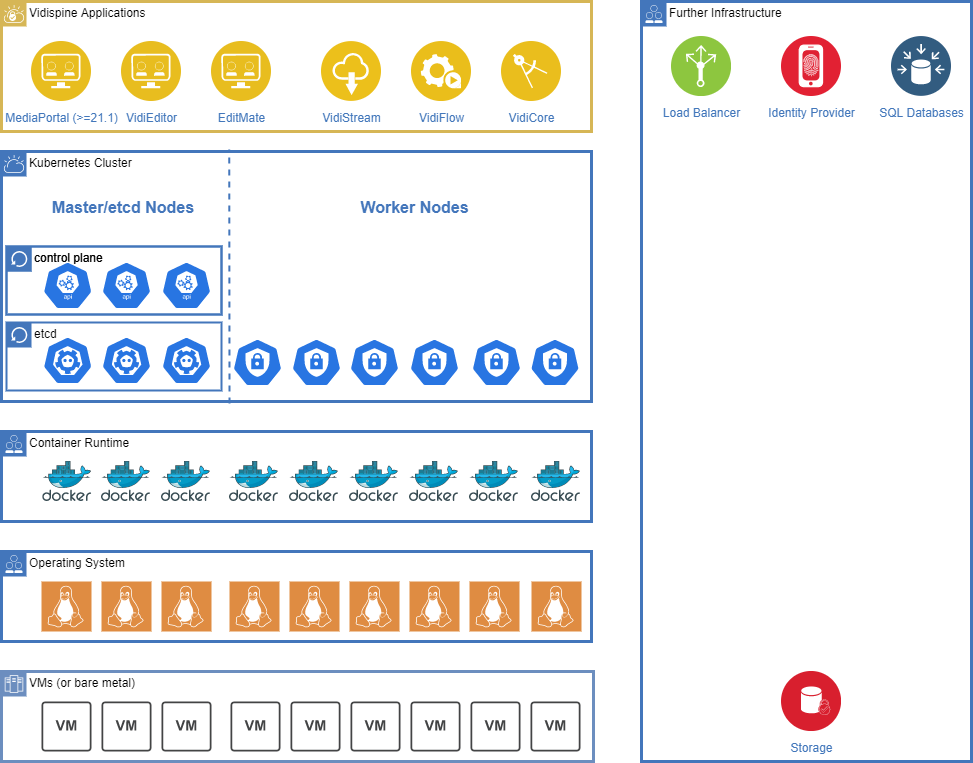

The following diagram shows the different infrastructure layers of an Enterprise MAM Solution on the left. It starts with virtual or bare-metal machines on the bottom on which further layers are installed: operating system, container runtime, and the Kubernetes cluster on top.
The Kubernetes cluster is the place where all products for building an Enterprise MAM solution are installed.
The column on the right shows further infrastructure in the customer’s environment which are prerequisites for properly configuring an operating an Enterprise MAM solution.
Depending on the functional requirements to be implemented, additional infrastructure components may be required.
For some project-specific components a Windows-based ServiceFabric cluster may be required.

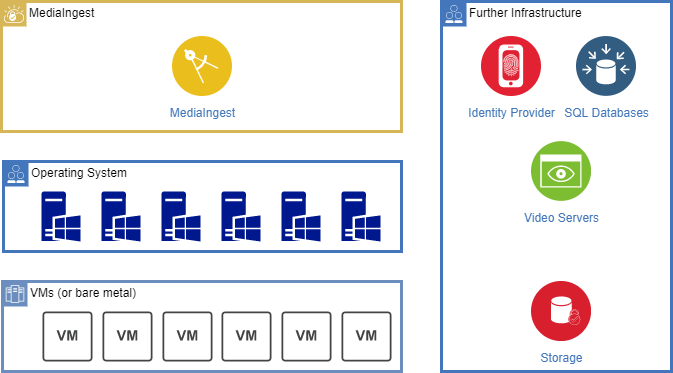

The product MediaIngest is based on worker-based VPMS and is installed directly on Windows machines:
