It is now possible to use existing metadata fields, defined in ConfigPortal, to provide some more flexibility and control for the input parameters of SendTo workflows.
When defining a SendTo workflow for MediaPortal in ConfigPortal, a new section is made available for creating a "Workflow Input Parameter" layout – similar to that in Edit Metadata Layout definitions.

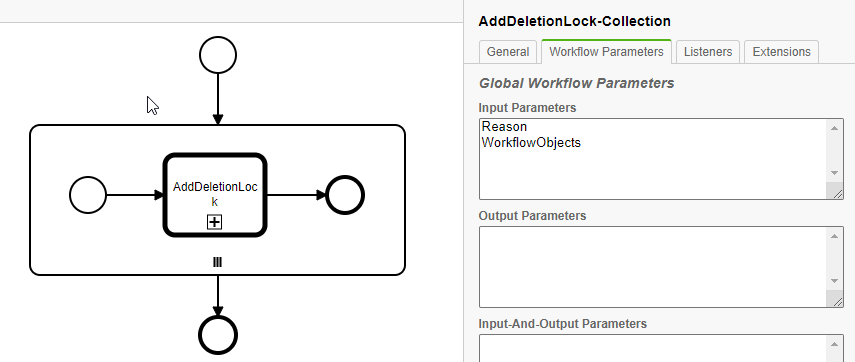

Imagine you have e.g. a workflow "AddDeletionLock-Collection" like follows:

This multi-instance workflow can be triggered on single assets as well as on collections in MediaPortal. For each asset, it will finally call the workflow "AddDeletionLock".
The workflow provides one standard input parameter "WorkflowObjects" which takes a list of objects as described above.
Additionally, it provides the custom input parameter "Reason" of type string and an "ExpirationDate" of type DateTime.

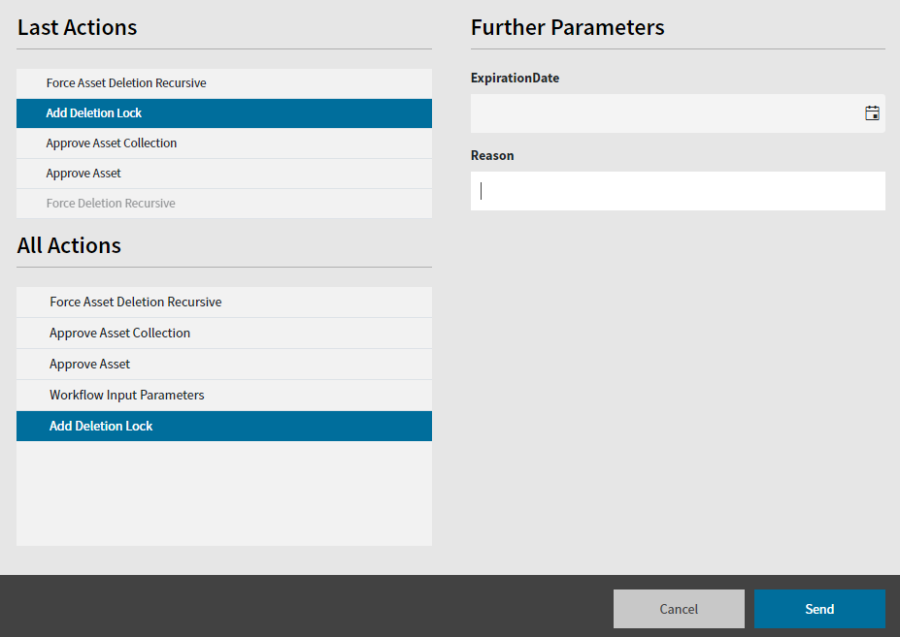

When you add this workflow as a SendTo workflow in MediaPortal, the SendTo dialog will typically appear as depicted below:

As the input parameter for "Reason" is a string, you get a simple input field and the label for that field is the name of the actual workflow input parameter.
However, one may often want to change the name of the label and maybe have a dropdown which provides valid values for the input.
Let us assume the label is "Reason for Deletion Lock", and only the following values are made available:

  • ExtendedUsage
  • EditingNeeded
  • UpcomingEvent

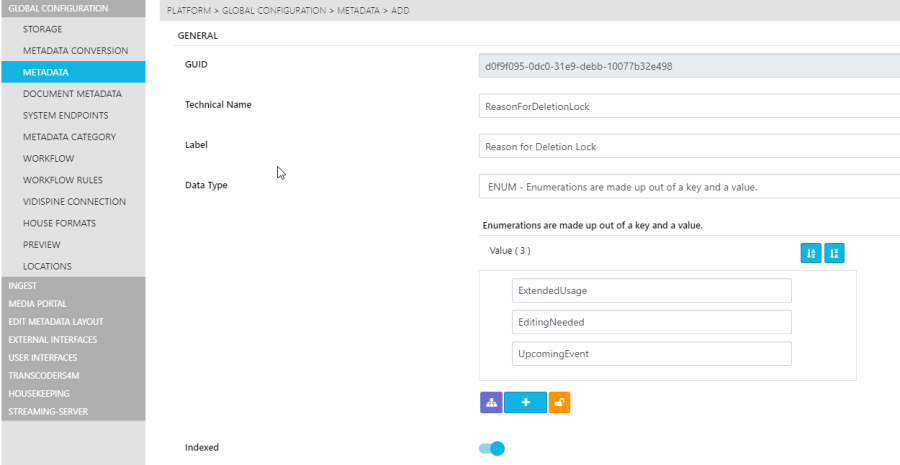

All you need is a metadata field defined in ConfigPortal which has the desired label and is of type enum with those values. Maybe you can use an already exiting metadata field or create a new one as follows:

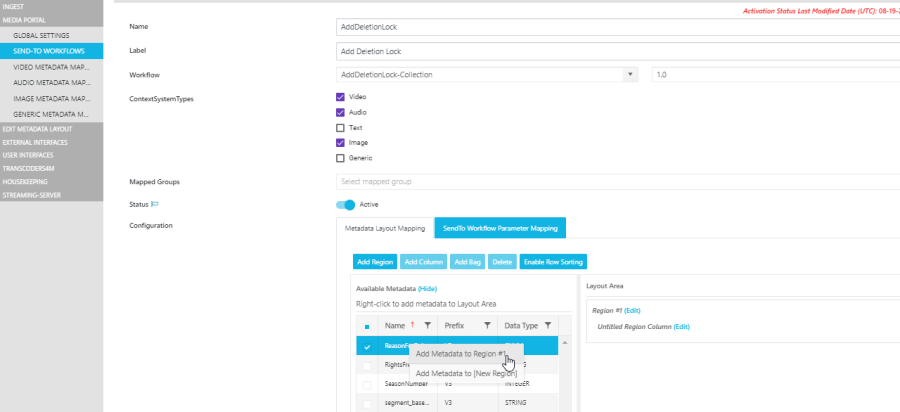

In the SendTo workflow configuration page, one can now select this metadata field and add it to a layout region, like you can do for metadata layouts.

Now you will already see an enum in the SendTo dialog for that value. One still has to define to which actual workflow input parameter the value of that filed is assigned.

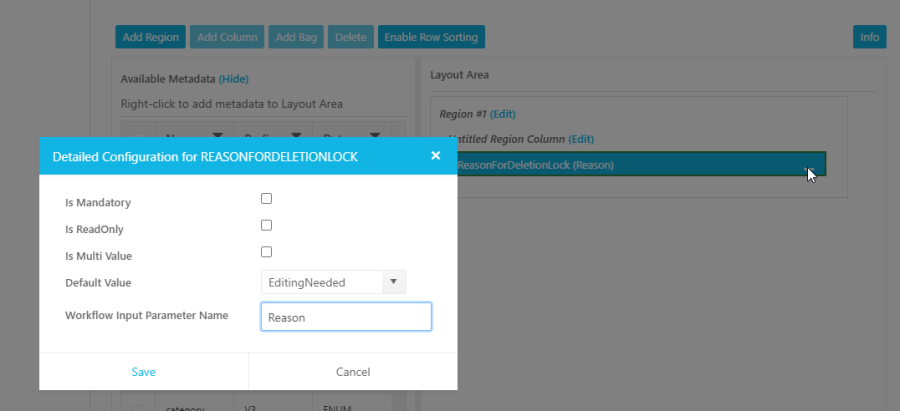

You can do so by selecting the three dots "…" on that filed in the layout area. Then you will get a pop-up dialog as shown below:

In the field "Workflow Input Parameter Name" you will have to type in the name of the workflow input parameter to which the value will be assigned.
The name has to be specified manually, because the current version ConfigPortal is not aware of the available input parameters of a workflow. This might be supported in future.
Additionally, one can provide a default value.

Please note that the following options are currently not supported:

  • Mandatory
  • ReadOnly
  • Multi Value

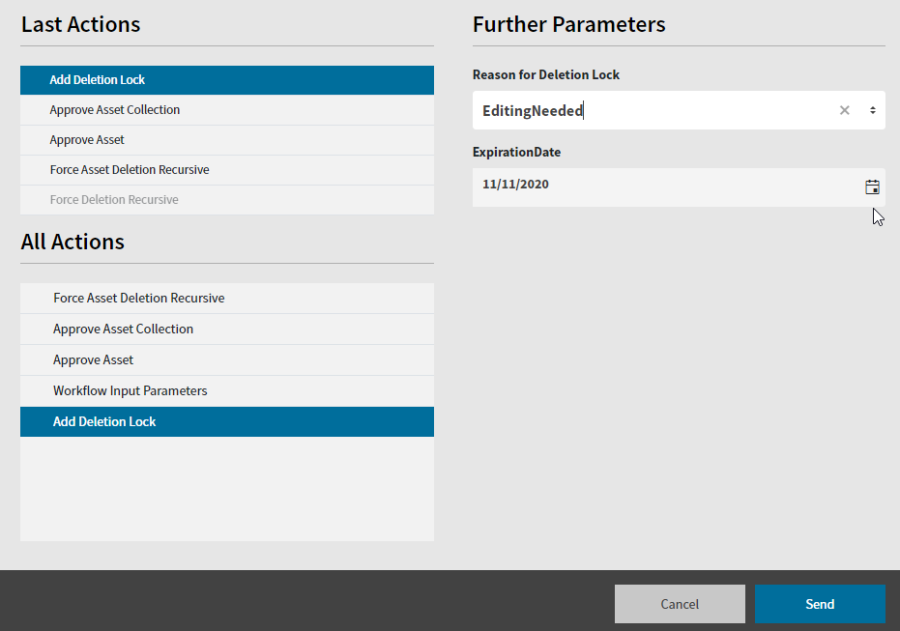

When you save the changes, as shown in the previous screenshot, the SendTo dialog will look like follows.

With the layout editor's support, you are able to add any amount and types of additional input parameters. You can also arrange the order of the fields. However, MediaPortal only supports ordering from top to down, no column-like ordering. If you define a layout with columns this will be "flattened" to rows.
