Event representation [ML 21.4 UG]

As described above it totally depends on the customer configuration, that is done in ConfigPortal, which metadata fields are shown for an event. It also depends on the configuration if an index number, the original timecode or a thumbnail for each event is displayed. In general an event consists of following parts:

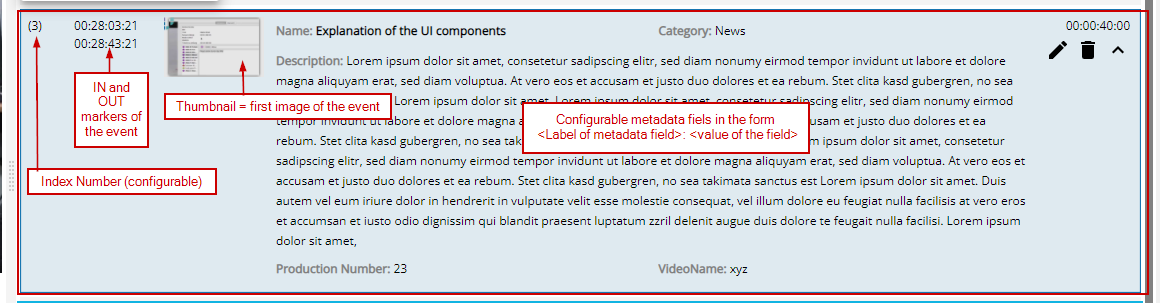

Example for the display of an event

Symbol

Meaning

Explanation

Edit event

Will open the edit mode of the selected event

Delete event

Will delete the selected event (after a confirmation dialog was accepted).

Show details

Will show all metadata fields of the event

Hide details

Will collapse the selected event and shows it in condensed view

Commit changes

The symbol is shown when being in edit mode. By pressing the button, all changes will be commited and saved.
