Convenient Specification of Default Values for Workflow Input Parameters [VF 20.2 RN]

In Workflow Designer, workflow input parameters can be set to be optional. When setting a parameter to optional, a default value shall be provided. In the previous version, the default value could only be assigned in a text file as string, independent of the data type of the input parameter.
For some data types, such as DateTime, Storages, ShapeTags etc, this is quite inconvenient.
In this version the specification of default values is much easier by providing special UI support for such data types.

Behavior

When specifying a default value for a workflow input parameter you can now use the same UI elements for different data types as were already available for specifications of values for task input parameters.
Examples:

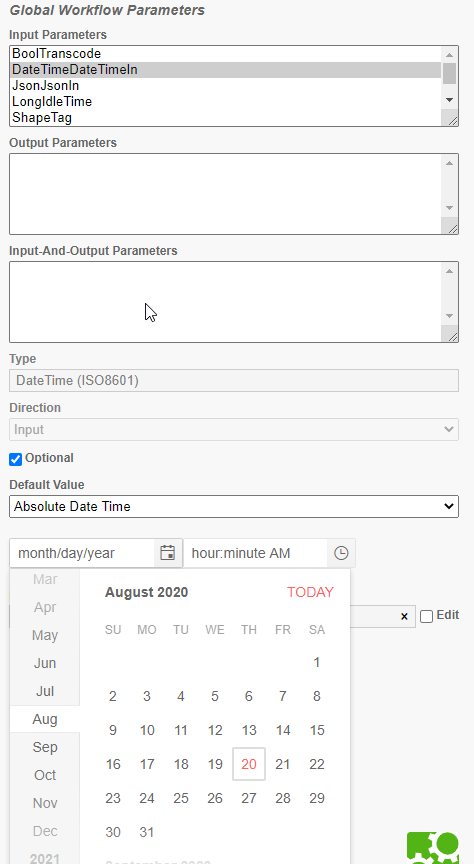

Picker for DateTime parameters:

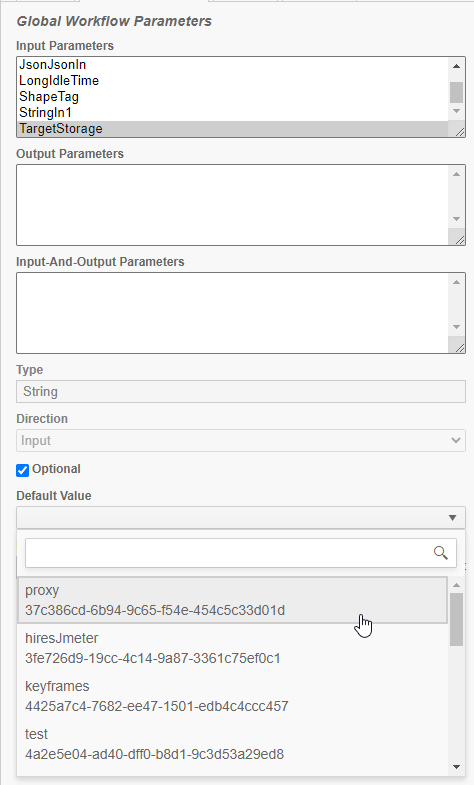

Drop-down for storage selection

Implications

For Boolean values, there is still no special control. You have to specify string value "true" or "false".
